Audytor SET

Program for designing cold and hot water installations with circulation, and central heating and cooling installations.

The Audytor SET program, as well as the company customized version created on its basis containing products from your assortment, will allow to reach with information about the company and its products to many potential recipients.

Audytor SET 7.2 Basic

[EE] The Audytor SET program is designed to support the design and adjustment of central heating installations, cold, hot and circulation water installations as well as central cooling installations in which the medium is water or water glycol solution.

The Audytor SET program is designed to graphically support the design and adjustment of central heating installations, cold, hot and circulation water installations as well as central cooling installations in which the medium is water or water glycol solution.

A program with a built-in mechanism for importing building bases from Autodesk® Revit® and exporting the installation design to Autodesk® Revit®.

Audytor SET

The Audytor SET program combines calculations of cold and hot water installation with circulation and central heating and cooling installations in one project.

New features and improvements introduced in version 7.2

  • extension of the floor heating design module,
  • a new two-dimensional graphics module ensuring better ergonomics and higher readability and speed of displaying graphics,
  • extending the range of mixing group schemes,
  • improvements in the DWG module,
  • shorter opening time of the project,
  • extension of Excel export with the ability to simultaneously save all tables,
  • other new features.

Program modules

The Audytor SET consists of the following modules:

Module of cold and hot water installation with circulation.

More about the program

Module of central heating installation, including underfloor heating.

More about the program

Module of central cooling installation.

More about the program



  • Individual modules cooperate with each other and use a common 2D and 3D graphic environment.
  • The modules can also work indepedently if it is necessary to design only one system of installation.
  • Each module is activated by a separate license key,
  • License keys run individual modules in the Basic or Pro version.
  • It is possible to run the program using a trial license.

The program since version 7.1 has a mechanism that automatically generates the axonometric scheme of the designed installation.

Axonometry drawing can be printed or exported to DWG format, which allows to create a complete project documentation.

The axonometry schema also allows displaying the scheme of the entire installation in one drawing allowing for a more precise orientation in the project and selecting and simultaneously editing the element data on different floors, which significantly speeds up the procedure of design modification and installation adjustment.

Function of quick calculation of underfloor radiators

This function makes it possible to perform calculations for a group of underfloor radiators during the design process, before the complete calculation of the installation. Thanks to this, it is possible to quickly test the response of the calculation results to individual data (e.g. supply temperature, heating floor structure, diameter of the pipes, spacing of pipes, division into several circuits, etc.).

The function of quick selection of underfloor radiators allows to determine:

  • possible supply temperature range for individual radiators
  • maximum supply temperature for the indicated group of radiators
  • proposed division of coils in order to meet the criteria of maximum hydraulic resistance and maximum length
  • proposed division of coils in order to reduce the differences in resistance between coils and to facilitate hydraulic balancing of the installation.

Import of building bases in PDF format

The Audytor program has long been able to import drawings in many popular formats. DWG and DXF formats are particularly suitable for technical drawings. However, in market practice, a large part of the documentation is provided in PDF files. Although it is a general format and not addressed to technical drawings, due to frequent use, the Audytor SET software has the option of importing drawings also in this format.



Drawing of underfloor heating coils

The program has expanded the possibilities of automatic drawing of floor heating coils. Currently, the user can choose one of the following ways to create a given coil:

  • spiral with clockwise direction
  • spiral with counter-clockwise direction
  • meander coil.

Besides, the user can edit (correct) the coil shape created by the program.

New graphic design of the Audytor SET program

The graphic design has been changed in the program - both in terms of the graphic style and window organization. Thanks to this, they have become even more transparent

Mechanism for determining the effective heating surface of floor heaters

The automatic coil pipe generation mechanism has been extended with a function that allows determining the effective heating surface of a floor heater. The coil system can occupy the surface of the entire heater or "bypass" the manifold and connecting pipes of other heaters. It is also possible to designate zones to turn off part of the heating zone without having to change the shape of the heater itself.

Dividing and joining heating zones, rooms and polygons

Tools for quickly dividing and connecting polygons that define hotplates. One field can be divided into two or three equal fields - horizontally or vertically, respectively. The user can also indicate a dividing line using a broken line. At the same time, the option of combining several cooking zones into one has been introduced.

These functions are especially useful when designing underfloor heating, but can be used for sharing
and joining other polygons (e.g. room zones).



Selection of coil drawing direction

The program allows you to choose the direction of drawing the spiral coil clockwise or counterclockwise.

Choice of pipe laying method in concave corners

Depending on the shape of the room and the assumed coil pipe laying system, it is possible to impose a way of drawing pipes "bypassing" concave corners.

Auxiliary lines for manual drawing of the coil

If the automatic coil generated option is switched off, the program displays auxiliary lines supporting manual drawing of lines. The lines are drawn with a given spacing taking into account the spacing in the peripheral zone.

Insert a heating zone around the cursor

The function of automatic insertion of a heating zone in the room zone (so-called insertion around the cursor).

Showing unconnected heating zones

The heating zones before connecting to the pipes are displayed in less intense colors, thanks to which it is very easy to know which fields still need to be connected.

Extending the range of mixing group schemes

Extended range of mixing group schemes with the possibility of local mixing at the manifold.

Drawing in drawing

It is possible to insert a fragment of another drawing in the drawing. This significantly increases the possibility of creating clear technical documentation.

Inserting a fragment of a DWG drawing

The ability to easily use one DWG file containing architectural plans of many floors.

The user can indicate which parts of the DWG file are to be used on each floor and then adjust their position using precision panning tools.

Coloring the walls

Display of walls with filling - gray for external walls and yellow for internal walls. This improves the readability of created drawings.

Selection in color

When selecting objects using the window, the selection window is filled with blue, which improves its readability.

Readability of selected objects has also been increased by displaying them with all details in green.

Selective selection

The selective selection function allows you to indicate what elements of the drawings are to be marked (e.g. rooms, pipes, fittings, etc.).

This function is useful when, for example, the user would like to duplicate selected elements from the indicated area to the next floor.

Narrow the range of selected objects in the tables

The functions Leave selected lines and Leave unselected lines allow you to narrow the range of selected objects. After selecting a number of elements in the drawing window, you can then remove from the selection the items indicated in the table or just leave those items.

Precise moving of objects

This function enables precise moving of objects. The user defines the displacement vector, i.e. specifies the start and end points.

This function, combined with the Magnifier tool, enables very precise moving of objects. It is very useful, in the case of matching architectural objects on different floors. Just enable the display of the previous floor and then indicate the corresponding points on the architectural plans of two floors.

Improved critical flow display

When you turn on critical flow display, the other elements of the drawings are displayed less intensively. This makes it even easier to orient yourself in the course of critical circulation.

Drawing adjacent floors

Expanding the possibilities of displaying (drawing) the previous floor.

Currently, elements of the previous storey or the next storey can be displayed, or both. This facilitates adjusting architectural projection positions and location of installation risers.

Temporarily turn off of the label display

The option of temporarily turning off the display of labels during design, improves the readability of drawings on the screen in situations where labels are not necessary.

Adjusting wall thickness

This option allows you to change the thickness of the walls when drawing them:
– CTRL + left square bracket - reducing the wall thickness,
– CTRL + right square bracket - increasing wall thickness.

The same effect can be achieved by pressing the CTRL key while holding the mouse wheel. This function allows easy adjustment of the wall thickness to the loaded building foundation (planview).

Export extension to Excel

The ability to export to Microsoft Excel not only individual tables, but also all tables and diagnostics at once. This significantly reduces exporting time if you need to save a number of tables.

Import and export of drawings in DWG 2018 format

The program has been equipped with the latest cooperation module with DWG and DXF files.

It allows among others:

  • Loading DXF and DWG drawings in the newest versions (until 2018).
  • UNICODE text support for most characters to be displayed correctly.
  • Export of drawings in the following formats: DWG 2000, DWG 2004, DWG 2010, DXF 2000, DXF 2004, DXF 2007, PDF, SVG, CGM, HPHL, SWF.
  • Significantly faster display of complex drawings thanks to the simplified paint function.
  • A more realistic export of drawings to DXF and DWG files.
  • Saving raster drawings in DXF and DWG files.
  • More convenient management of drawing layers

Import of building bases from Autodesk® Revit®

The function allows to create layout of corresponding to the levels on which rooms have been defined in Autodesk® Revit®. The transfer of data takes place via a file generated in Autodesk® Revit® using the Audytor gbXML plugin.

Read more

Export of the installation project to Autodesk® Revit®

The function allows you to export the installation project to a file that can later be loaded into Autodesk® Revit® using the Audytor SET plugin for Revit.

The function allows you to export from the data and export from the results. Export from data allows you to save even an incomplete installation project (not recalculating), for example, the arrangement of the water risers, or the layout of the radiators. Export from results allows us to use technical data of selected pipes and devices in Autodesk® Revit®, eg pipe diameters, valve settings, radiator sizes, and pipe spacing in underfloor heating. In addition, physical quantities are available, such as the medium speed, the power of the radiator, and pressure losses.

Read more

  7.2 Pro 7.2 Basic 7.1 Pro 7.1 Basic 365 Pro 365 Basic
Audytor SET
Function of quick calculation of underfloor radiators
Import of building bases in PDF format
Drawing of underfloor heating coils
New graphic design of the Audytor SET program
Mechanism for determining the effective heating surface of floor heaters
Dividing and joining heating zones, rooms and polygons
Selection of coil drawing direction
Choice of pipe laying method in concave corners
Auxiliary lines for manual drawing of the coil
Insert a heating zone around the cursor
Showing unconnected heating zones
Extending the range of mixing group schemes
Drawing in drawing
Inserting a fragment of a DWG drawing
Coloring the walls
Selection in color
Selective selection
Narrow the range of selected objects in the tables
Precise moving of objects
Improved critical flow display
Drawing adjacent floors
Temporarily turn off of the label display
Adjusting wall thickness
Export extension to Excel
Display of system pipes with actual diameters
Intelligent duplication of system components - "down".
A system of editable keyboard shortcuts
The function of organizing labels on several floors at the same time
Import and export of drawings in DWG 2018 format
Import of building bases from Autodesk® Revit®
Export of the installation project to Autodesk® Revit®
The ability to check the correctness of the floors layout
Creating a list of fittings
Adjustment of existing installations
Designing new installations
Designing a traditional two-pipe installation
Desiging on plan views
Desiging on diagrams
Loading of building bases with the results of heat load from the Audytor HL program
Loading the list of rooms with the results of the heat load from the Audytor HL software
The ability to draw building bases (walls, windows and doors)
Automatic creation of diagrams of risers based on plan views
Determining the design water flows in the pipes
Selection of pipe diameters
Determining the hydraulic resistance of individual elements of the installation
Determining the required available pressure
Regulation of water flows in the DHW circulation network by selecting appropriate control elements (valves with pre-settings, orifices, thermostatic valves)
Visualization of critical circuits
Calculation of the required water flow in the DHW circulation network by the thermal method consisting in determining the cooling of hot water in individual areas
Selection of thermal insulation for pipes
Selection of temperature settings of thermostatic valves, taking into account the water cooling in the circulation pipes
Auxiliary lines indicating characteristic points
Drawing lines in pairs (supply - return)
Drawing lines in pairs (CW - HW)
Drawing lines with a continuous broken line
Automatic inserting of radiators under the windows
Automatic connection of radiators to distribution pipes
Automatic connection of receivers to distribution pipes
Bonding and scaling drawings
Graafiline redaktor
Duplicating fragments of drawings within a storey and to the next storeys
Vaikeandmete rakendamise süsteem
Creating mirror images of parts of drawings
Ready-made blocks of typical parts of the installation
Backup system of data files
Ability to create your own blocks
Extensive directory database
Extended editing functions in tables
"Find and Replace" function in tables
Põranaküttesüsteemide projekteerimine
Automatic drawing of the underfloor heating coil
Andmete kontroll ja arvutustulemused
Three-dimensional visualization of the installation
Extended error diagnostics
Automatic axonometry of the installation
Defining default data for all kinds of devices
Catalog photos of selected devices in the hints in the table
The function of organizing zones of risers on the diagrams
Considering the heat gains from connections to underfloor radiators as a radiator power
Selection of pipe diameters in the installation
Selecting radiators (catalog 55 thousand)
Selecting fittings
Provides total pressure losses in the system
Reduces excess of pressure in the circuits through the selection of presets on the valves or flanges selection of the throttle bores.
Adjusts presets of the pressure and flow rate governors
Selects group of pumps
Selects pumps
Allows the use of dual manifolds

New program features 7.0 Pro

  • Possibility to import building bases from Autodesk® Revit® via a gbXML file,
  • Possibility to export data about the designed installation to Autodesk® Revit®..

Graphic editor

A drawing with marked room zones is necessary to create a project. They can be drawn manually in the program or loaded together with bases from the HL program. If a three-dimensional model of a building has been created in the HL program, the drawings with the results will be loaded into the program. The building entered in tabular form will be loaded as a list of rooms with the results.



The most comfortable mode of operation allows you to take full advantage of the possibilities of cooperation with the HL program:

  1. Uploading building bases to the HL program from files such as DWG, DXF, WMF, JPG.
  2. Drawing a building model in the HL program and making thermal calculations.
  3. Loading the results from the HL program in the system design program (heat load values and floor plans)
  4. Drawing the installation and making calculations.

Designing an installation can be carried out only on a diagram, only on plan views, or partially on plan views and partially on a diagrams. It is also possible to combine fragments of installations drawn on plan views with elements drawn on diagrams.

In the case of drawing onplan views, the program automatically creates a simple diagram of risers, "fastening" individual projections. The program (Audytor CH from version 6.0, Audytor CC and Audytor H2O from version 7.0) has been equipped with a three-dimensional visualization module of the installation, analogous to the building visualization module, available in the Audytor HL program, starting from version 6.0.

Default data inheritance system

A significant part of the parameters introduced at the beginning of defining the building are typical data for the entire building (the so-called default data). When entering general data, the user can define for each device default catalog symbol. This symbol is automatically assigned to each device in the drawing. The previously defined default catalog symbol can be changed at any time, also after inserting the device into the drawing. Changing the symbol of a device in the general data will change the symbols of all devices of a given type, unless the symbol has been “firmly” entered for a given device.

The data is edited in the table, which allows you to specify parameters for many drawing elements simultaneously. Linking the drawing to the table makes the element edited in the table highlighted in the diagram.

The data inheritance system allows you to:

  • significant time savings at the data entry stage (without the need to repeatedly enter repeated data),
  • very quick change of data in case of a change in design assumptions or creating variant projects.



New program features Audytor 7.1

  • Import and export of drawings in DWG 2018 format
  • The function of organizing the zones of risers in the development
  • Data file backup system
  • A mechanism that automatically generates an axonometric scheme of the designed installation
  • Ability to display installation pipes with actual diameters
  • Mechanism of intelligent duplication of installation elements
  • The function of arranging labels on several storeys at the same time (in plan views and axonometry drawings) and a mechanism for duplicating labels on adjacent storeys
  • Improving the drawing of sewage installations.
  • A system of keyboard shortcuts to assign simple button combinations to the most used drawing tools.
  • Improvements in editing drawing layer properties.
  • Improvements in displaying information about the circulation by a given heater / receiver.

Andmete sisestamine

Rakendusse saab andmeid sisestada plaanidel graafilise liidese kaudu või diagrammidel. Joonestatud elemente puudutav teave esitatakse plaanivaadetega seotud tabelites või diagrammidel. Tänu tabelipõhisele süsteemile on võimalik kiiresti muuta nii üksikute torude, radiaatorite ja liitmikega seotud andmeid, kui ka terveid komponentide gruppe. Iga süsteemi kuuluv komponent on varustatud valideerimis- ja tugisüsteemiga, mis kogub teavet sisestatavate koguste ja vastavate kataloogiandmete kohta.

Andmesisestuse lihtsustamiseks on tarkvaral:

  • võimalus redigeerida samaaegselt mitut süsteemi komponenti;

  • võimalus kasutada valmis plokke;

  • nutikad funktsioonid, mis kopeerivad joonise detaile horisontaalselt ja vertikaalselt ning nummerdavad elemente vastavalt ümber;

  • võimalus määratleda piiramatu arv kohandatud plokke, mis võivad koosneda mis tahes joonise osast;

  • kiire ligipääs täiendavale teabele sisestavate koguste kohta;

  • ekraaninupud, mis võimaldavad kiiret ligipääsu sagedamini kasutatavatele komponentidele;

  • funktsioonid, mis seovad dünaamiliselt jooniseid tabelitesse kantud andmetega;

  • funktsioonid, mis ühendavad automaatselt torudega liitmikke, radiaatoreid ja teisi süsteemi komponente;

  • automaatne püstikute loomine plaanivaadete alusel;

  • võimalus muuta andmeid tabelivormis, et määratleda mitme valitud komponendi andmeid samaaegselt;

  • joonise ja tabeli vahelised seosed tõstetakse joonisel esile komponendi valimisel tabelist.

Andmete diagnostikasüsteem

Iga süsteemi kuuluv komponent on varustatud valideerimis- ja tugisüsteemiga, mis kogub teavet sisestatavate koguste ja vastavate kataloogiandmete kohta ning kontrollib jooksvalt andmete õigsust.

Ehitise alusjoonised

See rakendus võimaldab luua süsteemi projekti täismahus graafilise dokumentatsiooni tänu võimalusele kuvada arvutustulemusi korruseplaanidel. Sageli tuleb projekteerimise käigus sisestada projekti kujutis. Kujutisi on võimalik sisestada avades faile, skaneerides või kleepides mujalt. Sisestamise järel vajavad kujutised sageli joondamist, kalibreerimist, vähendamist või täiendavat korrigeerimist.

Tehnilisi jooniseid (nt alusjooniseid) luuakse tänapäeval valdavalt arvutite abil. Need on seejärel saadaval elektroonilises vormingus failidena. Tehnilistele joonistele on sobivaimad vektorvormingud (nt DWG, DXF, WMF, EMF). Pildifaile on võimalik luua ka skaneeringutena. Sel juhul luuakse need pea alati rastervormingus (BMP, JPG, JPEG, TIF, TIFF, GIF, ICO, PNG).

Üldjuhul tuleb pildi laadimisel sisestada andmeid dialoogiaknasse Picture (kujutis). Kui kujutis on rakendusse sisestatud, siis vajab see reeglina joondamist ja vähendamist. Hea elektroonilise tulemuse saavutamiseks võib kujutis vajada ka kalibreerimist. Rakenduses on võimalik valida skaneeringu resolutsioon ja kvaliteet ning salvestada skaneeritud dokumendid valitud graafilises vormingus. Rakendus ühildub TWAIN-standardil põhinevate printeritega.

Bonding and scaling drawings

HL programs (from version 6.0), and CH (from 4.0) are equipped with the function of Graphic creation of a building model. This function gives you the opportunity to draw a building model. To simplify the action of drawing, you can load a drawing base into the program. The file being loaded can come from an external program for creating technical drawings (eg DWG), or from a scanned drawing (eg JPG). The scanned drawing can be divided into several files. Drawings scanned into several files usually do not keep the scale precisely enough. They can also be rotated relative to each other by a small number of degrees.

Drawing bonding allows you to quickly scale multiple scanned drawings (in different sizes and rotated) and bond them with one another.

Graafiline redaktor

Süsteemi projekteerimiseks on vaja tähistatud ruumidega joonist. Projekteerija saab joonistada ruume käsitsi või laadida neid koos plaanivaadetega küttekoormuse rakendusest (OZC 6.5). Kui hoone kolmemõõtmeline mudel loodi rakenduses OZC 6.5, siis saab plaanivaateid koos küttearvutustega importida rakendusse CH. Tabelivormis sisestatud hooned laetakse ruumide ja vastavate arvutustulemuste loendina.



Kõige mugavam viis rakenduste OZC 6.5 ja CH 4.0 kombineeritud kasutamiseks:

  1. hooneplaanide importimine DWG, DXF, WMF jt vormingutes failidena rakendusse OZC 6.5;

  2. hoone 3D-mudeli loomine rakenduses OZC 6.5 ning soojusarvutuste teostamine;

  3. tulemuste laadimine rakendusest OZC 6.5 rakendusse CH 4.0 (küttekoormus ja põrandaplaanid);

  4. süsteemi projekteerimine rakenduses OZC 6.5 ja arvutuste läbiviimine.

Süsteemi on võimalik projekteerida kas diagrammivaates, plaanivaates või mõlemat kasutades.
Süsteemi koostamisel plaanivaadetes, loob rakendus automaatselt lihtsa diagrammi, mis "ühendab" plaanivaated.

Vaikeandmete rakendamise süsteem

Märkimisväärne osa hoone alustamise käigus sisestatavatest andmetest kehtib ka ülejäänud hoonele (nn vaikeandmed). Neid andmeid kasutab vaikeandmete rakendmise süsteem.


Kasutaja saab igale seadmeklassile määrata muuhulgas ka vaikimisi kataloogisümboli. See sümbol rakendatakse automaatselt kõigile projektis kasutatavale seadmele. Kataloogi vaikesümbolit on võimalik alati muuta, ka pärast seadmete lisamist joonisele. Sümboli muutmine üldandmetes muudab kõigi seda tüüpi seadmete sümboleid, kui üksikule komponendile ei ole eraldi määratud kindlat sümbolit. Ka mitmeid muid parameetreid on võimalik rakendada üldtasandil.


Andmeid muudetakse tabelis, mis võimaldab samaaegselt määratleda mitme elemendi parameetreid. Joonise ja tabeli vahelised seosed tõstetakse joonisel esile komponendi valimisel tabelist.


Vaikeandmete rakendamise süsteem võimaldab teil:

  • säästa märkimisväärselt aega andmete sisestamise etapis (kaotab vajaduse sisestada andmeid korduvalt);

  • kiirelt muuta korduvaid andmeid, kui projekt muutub või peate looma projektist mitmeid variante.

Backup system of data files

The program has a mechanism that automatically creates a set of project backups (up to 8 files).

Data files are backed up every time data is saved, with the new files overwriting the older files so that at least one copy of the file from each stage of the project work is always kept.

This function will allow you to recover the project file even if its last versions are overwritten or damaged.

Extensive directory database

The program catalog database contains information on pipes, fittings and radiators. This database is constantly developed.
In one design, fittings, pipes and radiators from different companies can be used simultaneously.

Projekteerimise tugifunktsioonid

  • Hiirekursor muutub väikseks pildiks kõige sobivamast või viimatikasutatud funktsioonist.

  • Kuvatakse lisaliinid, mis võimaldavad automaatset ühendamist kindlate liitepunktidega (nt radiaatorite liitekohad).

  • Torusid on võimalik joonestada paaridena (varustus-/tagastusahel), millel on määratud vahed ja mis, vajadusel, ühendatakse automaatselt seadmetega (nt radiaatorite liitpunktidega).

  • Torustike joonestamine polügoonse ahelana vähendab vajalike hiireklikkide arvu.

  • Radiaatorite automaatne sisestamine akende alla.

  • Radiaatorite automaatne ühendamine torudega.

  • Võimalus kopeerida mis tahes joonise osa ühe korruse piires või järgmisel korrusel.

  • Võimalus luua elementidest peegelkujutisi.

  • Võimalus kasutada valmis plokke. Tarkvaraga kaasneb ka joonise standardosade (plokkide) andmebaas, mis sisaldab tüüposasid nagu püstakud, korteri- või kollektorsüsteemid, ning võimaldab kiiresti luua süsteemi jooniseid.

  • Võimalus määratleda piiramatu arv kohandatud plokke, mis võivad koosneda mis tahes joonise osast. Eelmääratletud plokke on edaspidi võimalik kasutada ka teistes projektides.

Põranaküttesüsteemide projekteerimine

Sel rakendusel on integreeritud põrandaküttesüsteemide projekteerimise moodul. See on keskküttesüsteemide projekteerimise graafilise süsteemi keskne osa. Põrandaaluse küttesüsteemi projekteerimise esimene samm on määratleda põranda ehitus (joonis 3). Rakenduse andmebaasis on kõige populaarsemad põrandaküttesüsteemid, sh torud, süsteemiplaadid, soojus- ja niiskustõkked, kinnituselemendid jm. Projekteerija võib luua terve struktuuride komplekti, mis on saadaval ka järgmistes projektides. Rakendus teostab arvutusi vastavalt standardile EN 1264. Põrandaküttesüsteem projekteeritakse valitud süsteem, märg- või kuivlahenduse ning põranda struktuuri alusel. Valitud soojustusmaterjali tootjapoolsed andmed on vaikeseadistuses, kuid neid saab soovi korral kohandada.

Põrandaküttelahenduse kütteväljundi esialgsed arvutused saab teostada vahetult pärast põranda struktuuri sisestamist (joonis 4). See võimaldab ligikaudselt hinnata radiaatori soojusväljundit, põranda pinnatemperatuuri ja teisi parameetreid. Arvutustulemused võivad osutuda kasulikuks radiaatorite valimisel kindlatesse tubadesse.


Põrandaküttesüsteemi lisamiseks joonisele piisab, kui sisestada andmed selle tüübi kohta, selle osakaal ruumi küttemahust ning radiaatorile ettenähtud põrandaala (joonis 5). Rakendus valib arvutamise käigus kütteahela torude sobiva paigutuse, arvutab tegeliku pindala ning ahela pikkuse.

Automatic drawing of the underfloor heating coil

The program is equipped with the function of automatic drawing of a heating pipe routing scheme in a spiral system.

Coils are created in all floor heaters on floor plans, taking into account the spacing of supply and return pipes as well as the indicated spacing between the pipes wherever possible, both in the basic zone and in edge zones.

The program also performs precise calculations of the generated coil length.

Andmete kontroll ja arvutustulemused

Programm kontrollib andmete sisestamisel pidevalt nende õigsust. See vähendab märkimisväärselt võimalike vigade hulka. Arvutusprotsessi käigus toimub täielik andmete valideerimine. Seejärel luuakse vigade, hoiatuste ja nõuannete nimekiri. Selles nimekirjas on välja toodud teave tähtsusastme ja probleemi asukoha kohta.

Arvutuste teostamise järel analüüsib programm saadud tulemusi. Luuakse teadete analoognimekiri. Põhjalik süsteemi diagnostika võimaldab projekteerijal hinnata koostatud projekti kvaliteeti. Rakendus on varustatud veakoha kiirotsinguga (leiab automaatselt tabeli, rea ja veeru, milles on valed andmed, või viitab vigasele komponendile joonisel).

Three-dimensional visualization of the installation

The function allows you to export the installation project to a file that can later be loaded into Autodesk® Revit® using the Audytor SET plugin for Revit.

The function allows you to export from the data and export from the results. Export from data allows you to save even an incomplete installation project (not recalculating), for example, the arrangement of the water risers, or the layout of the radiators. Export from results allows us to use technical data of selected pipes and devices in Autodesk® Revit®, eg pipe diameters, valve settings, radiator sizes, and pipe spacing in underfloor heating. In addition, physical quantities are available, such as the medium speed, the power of the radiator, and pressure losses.

Read more

Automatic axonometry of the installation

The program since version 7.1 has a mechanism that automatically generates the axonometric scheme of the designed installation.

Axonometry drawing can be printed or exported to DWG format, which allows to create a complete project documentation.

The axonometry schema also allows displaying the scheme of the entire installation in one drawing allowing for a more precise orientation in the project and selecting and simultaneously editing the element data on different floors, which significantly speeds up the procedure of design modification and installation adjustment.

The function of organizing zones of risers on the diagrams

In the drawing of the automatically created installation diagrams, the Organize button that has been added, enables the intelligent positioning of the zones of risers based on the data from the storey's plan views.

The program maintains the order of the risers within individual installation systems (CH, CC and H2O).

The function is particularly useful for large projects, significantly reducing the time needed to manually move the risers' zones.

The parameters of the organizing function can be modified.

Andmete kontroll ja arvutustulemused

Andmete sisestamisel kontrollib programm automaatselt nende õigsust. Rakendus salvestab veateate ja tuvastatud vigadega seotud teabe veafailis. Vigade loendi aken on varustatud vigade lokaliseerimise funktsiooniga. Rakendus tõstab esile joonise osad ja tabelis leiduvad andmed, et tähistada elemente, mille puhul tekkis viga.

Veadiagnostika võimaldab projekteerijal hinnata projekti kvaliteeti. Rakendusel on kiire otsingumehhanism, mis viitab vea asukohale (leiab vigaste andmetega tabelid, read ja veerud ning tuvastab sobimatud komponendid paigaldise joonisel).

Arvutustulemused

Arvutustulemusi on võimalik esitada nii graafilisel kui tabelikujul (joonis 7). Üksikuid süsteemi komponentide silte on võimalik vabalt muuta (valida kuvatavad väärtused ja siltide kujundus).

Kõigi tabelite vormingut on võimalik kohandada (valides kuvatavad read ja veerud, muutes kirjastiili) ja sorteerida vastavalt vabaltvalitud filtrile.
Tabelid sisaldavad üld- ja üksikasjalikke tulemusi spetsiifiliste seadmete ja ahelate kohta ning materjalide ja liitmike nimekirju.
Arvutustulemustega joonistel on valitud seadmega seotud andmetega sildid. Siltide vorming on täielikult kohandatav. Sildile saab kanda kõiki valitud elemendile kehtivaid tulemusi. Silte saab salvestada mitmes vormingus ja igal ajal uuesti muutmiseks avada.

Arvutustulemusi on võimalik välja trükkida plotteri või printeriga. Kasutaja saab valida joonise suuruse ja kasutada trükkimise eelvaadet, et otsustada, kuidas joonised trükitakse.

Kui joonis ei mahu ühele paberilehele, siis trükib rakendus selle osadena, mille saab omavahel kokku kleepida. Tänu sellele funktsioonile on võimalik ka kõige tavalisema A4 printeriga trükkida suuri jooniseid. Rakendus saab salvestada jooniseid ka DXF- ja DWG-vormingus failidena. Salvestatud jooniseid on võimalik avada ka muus tarkvaras, nt AutoCAD-is.

Arvutustulemuste tabeleid on võimalik välja trükkida ja avada teistes Windows-keskkonnas töötavates rakendustes (nt Excelis, Wordis jt).

Comfortable design in plan views

Designers can draw heating systems using information about walls, windows and rooms, imported directly from Audytor OZC software, or drawn in Audytor C.O. software.

Fast data input and edition

The concepts of data inheritance and default data, as well as application of variables make the process of entering data on heating systems fast and flexible. Parameters of equipment are stored in tables, that enable easy and fast modification of one, several, or even all components of heating systems.

Designing a several installations in one project

The ability to design several systems in one project in order to design the entire system for the building at the same time.

Faster installation designing

The program allows simultaneous input and modification of water supply, heating and cooling installations, which significantly improves the design process.

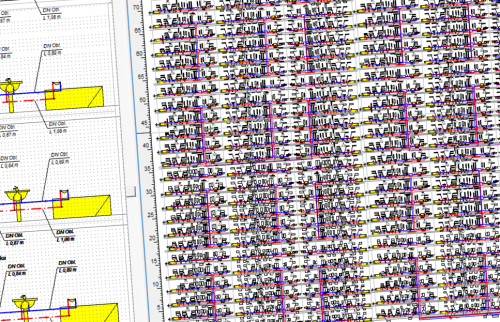

Unlimited size of the installation

Program Audytor H2O enables to design very large water supply systems (even thousands of accessories and draw-off points).

Simple analysis of possible installation collisions

A common 3D model of all three installations facilitates the analysis of installation collisions occurring in the project.

Many systems in one project

Designers can create many heating systems in one project, or even in a single drawing. Heating systems alone can include even several thousands of radiator components.

An efficient system for large installations

The proprietary (graphic engine enables the design of very large installations containing even several thousand items, receivers and taps.

Calculations

The software selects diameters of pipes and insulation of pipes, presets of accessories, dimensions of radiators, flat stations, low loss headers, heat buffers, pumps, pump groups and many other components of heating systems.

Efficient and fast calculation process

Program is equipped with a highly efficient analysis algorithm of graph installations and efficient algorithms of selection of pipes, fittings and accessories, which allow to calculate large installations in in less than a few seconds.

Free viewer for sanitary projects

The program without license keys can be used for viewing and printing projects and viewing the results of the selection of installation elements.

Creating technical documentation

Designers can use the editor of labels, creating overview of materials and components of heating systems in order to prepare technical documentation of projects. Diagrams of heating systems can be divided into any number of drawings. Drawings themselves can be exported into the DWG format.

Technical requirements

The program runs under MS Windows (7, 8, 8.1, 10) 32bit and 64 bit.

The minimum hardware:

  • 1200 MHz processor,
  • 1 GB RAM,
  • A color monitor with a minimum screen resolution of 1024x768,
  • 500 MB free space on the hard drive,
  • Compatible graphics card with OpenGL 2.0 and higher: all new graphics cards on the market should meet the minimum hardware requirements;Graphics card integrated with the motherboard: minimum GMA 500;

Hardware requirements for the 3D editor

Vertical resolution requirements for the screen:
- minimum - 768 points,
- sufficient for comfortable work - 900 points,
- the most convenient - 1080 points.

Requirements for system font settings:
- Windows Vista, 7, 8 - fonts "100% smaller",
- Windows XP - "normal" fonts.

The computer should have a graphics card that supports OpenGL technology in the version:
- minimum 2.0,
- sufficient for comfortable work: 3.3 and higher.


How can I check which graphics card model is on my computer?
- Windows Vista, 7, 8: Control Panel/System/Device Manager/Graphics Cards,
- Windows XP: Control Panel/System/Hardware/Device Manager/Graphics Cards.

Not recommended graphics cards that do not support OpenGL 2.0 (according to the manufacturer's data), on which the 3D editor will not work:



ATI/AMD:
- ATI Rage
- Original "ATI Radeon", jak i Radeon DDR, Radeon 7000, Radeon VE, LE,
- Mobility Radeon 7500, 9000
- Radeon 8500, 9000, 9200 and 9250.

Nvidia:
- Riva, Riva TNT 1 i 2, Vanta,
- GeForce256, GeForce2, GeForce3, GeForce4, GeForce FX
- Quadro
- Quadro NVS (50, 100, 200, 210S, 280)

Intel:
- Intel740
- Extreme Graphics (1-2)
- GMA 900, 950
- GMA 3100, GMA 3150
- HD Graphics (Rok 2010)
- HD Graphics (CPU Sandy Bridge) (Rok 2011)
- HD Graphics 2000
- HD Graphics 2500
- HD Graphics 3000
- HD Graphics P3000
and most of the integrated ones

OpenGL 2.0 support cards (sufficient

ATI/AMD:
- Mobility Radeon 9600, 9700
- Radeon X300, X550, X600
- Radeon X700–X850.
- Radeon X1300–X1950

Nvidia:
- GeForce 6 (GeForce 6xxx)
- GeForce 7 (GeForce 7xxx)
- Quadro FX Series
- Quadro FX (x300) Series
- Quadro FX (x400) Series
- Quadro FX (x500) Series
- Quadro NVS 285

Intel:
- GMA 500
- GMA 600
- GMA 3000
- GMA 3600
- GMA 3650
- GMA X3000 - X3500
- GMA 4500
- GMA X4500
- GMA X4500HD
- GMA 4500MHD


OpenGL 3.3 support cards (recommended)

ATI/AMD:
- Radeon HD 2000 series.
- Radeon HD 3450-3650, Radeon Mobility HD 2000 and 3000 series.
- Radeon HD 3690-3870.
- Radeon HD 4000 series.
- FireStream

Nvidia:
- GeForce 8 (GeForce 8xxx)
- GeForce 9 (GeForce 9xxx)
- GeForce 100 Series
- GeForce 200 Series
- GeForce 300 Series
- Quadro FX (x600) Series
- Quadro FX (x700) Series
- Quadro FX (x800) Series
- Quadro NVS (290 - 300)

Intel:
- HD Graphics 4000
- HD Graphics P4000
- HD Graphics 4200
- HD Graphics 4400
- HD Graphics 4600
- HD Graphics 5000
- Iris Graphics 5100
- Iris Pro Graphics 5200

OpenGl 4.2
- FirePro Workstation
- FirePro Server

OpenGl 4.3 and higher
ATI/AMD:
- Radeon HD 5000 series
- Radeon HD 6000 series
- Radeon HD 7000 series
- Radeon HD 8000 series
- Radeon HD 9000 series

Nvidia:
- GeForce 400 Series
- GeForce 500 Series
- GeForce 600 Series
- GeForce 700 Series
- Quadro x000
- Quadro Kxxx Series
- Quadro NVS (310 - 510)



Wikipedia source:

Cards with AMD Chipsets

Cards with Intel Chipsets

Cards with nVidia Chipsets







Autoriõigused © 2018 SANKOM Sp. z o.o.
