D-mudelite loomine ja küttearvutuste teostamine.

Tarkvara hoonete arvutipõhiseks 3D-mudeldamiseks ning üksikute ruumide küttevajaduse arvutamiseks


Rakendus arvutab (sõltuvalt versioonist):

  • seinte, põrandate, katuste ja lamekatuste soojuskandvustegurid;

  • valitud ruumide soojakao;

  • kogu hoone soojakao;

  • kortermaja küttetasakaalu kütteperioodil;

  • energiasertifikaadi;

  • aastase energiatarbe;

  • sobivad radiaatorid (ligi 55 000 ühikut).





A program supporting the calculation of the design heat load of rooms, determining the seasonal demand for thermal energy according to the new standards PN-EN 12831, PN-EN ISO 13370 and PN-EN ISO 13790, and for the creation of Energy Certificates. The program also performs hygrothermal analysis of homogeneous and heterogeneous building partitions according to PN-EN ISO 13788.

Program with a built-in mechanism for importing a building model from Autodesk® Revit®.

The Audytor HL 7.0 Pro program can be launched with the Audytor HL 6.9 Pro license number.

License owner of the Audytor HL 6.9 Pro program are welcome to download the newer version of the program.

 licencji na program #FirmName# OZC 6.9 Pro zapraszamy bezpośrednio do pobrania nowszej wersji programu.

Building 3D modelling and heat load calculations.

Software designed for 3D computer modelling of buildings, as well as for computer aided calculations of heat load of individual rooms.

Import and export of drawings in DWG format

The program has been equipped with the latest cooperation module with DWG and DXF files.

It allows among others:

  • Loading DXF and DWG drawings in the newest versions.
  • UNICODE text support for most characters to be displayed correctly.
  • Export of drawings in the following formats: DWG, DXF, PDF, SVG, CGM, HPHL, SWF.
  • Significantly faster display of complex drawings thanks to the simplified paint function.
  • A more realistic export of drawings to DXF and DWG files.
  • Saving raster drawings in DXF and DWG files.
  • More convenient management of drawing layers

How it works...

Import of the building model from Revit 2020 - 2022

The function allows you to import a building model from RevitRevit has the ability to export a building model to the gbXML format. In order for the gbXML file to be properly adapted to the Audytor HL, you should use Audytor gbXML - the Revit plugin. Depending on the amount of data entered in Revit, the model may be almost full after the transfer. In the Audytor HL, only the data on the functions of rooms and the grouping of rooms can be supplemented. The imported building model can be verified using a three-dimensional preview.

  7.0 Pro 7.0 Basic 6.9 Pro 6.9 Basic
Import and export of drawings in DWG format
Import of the building model from Revit 2020 - 2022
Possibility to add your own climate data
Calculation of the usable floor area of apartments (UFA)
Graphic creation of a building model
Determining building energy performance certificates according to the methodology in Journal Of Laws of 18 March 2015. Item 376 - calculation method
Module supporting the initial filling in of the Central register of energy performance of buildings form
Heat transfer coefficient U for windows and door according to the standard PN-EN ISO 10077-1
Determining building energy performance certificates according to the methodology in Journal Of Laws of 2014. Item 888 - calculation method
Shading coefficient Fsh according to the standard PN-EN ISO 13790
Possibility to add your own linear thermal bridges to the database
Surfaces thermal bridges (linear and point) in multilayer partitions
Bonding and scaling drawings
Preview of the temperature compensation factor for homogeneous materials
The internal unit heat capacity of the building is calculated based on a building structure
The ability to define which groups of rooms are not to be taken into account when calculating the cost sharing factors
Defining hygenic requirements for your own types of rooms
The ability to define the default LENI value for lighting
Creates a set of building materials in the building construction
Backup system of data files
Possibility to include a suspended ceiling in the thermal calculations of rooms
Creates a set of building components in the building construction
Creates a raport with a set of materials (building materials, building components, carpentry, radiators, manufacturers)
Heat load PN-EN 12831

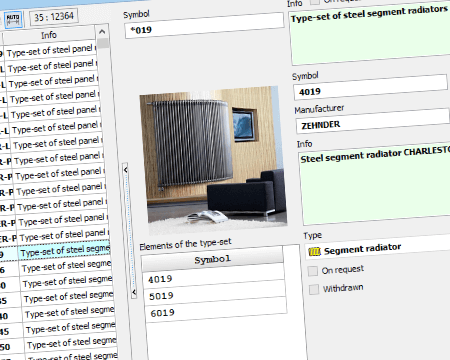

Selecting radiators
Cooperation with programs from the SET family
Energy Performance Certificate according to the methodology from 2008
Energy use - heating PN-EN ISO 13790
Energy use - cooling PN-EN ISO 13790
Energy use - heating PN-B 02025 (norma nieaktualna)

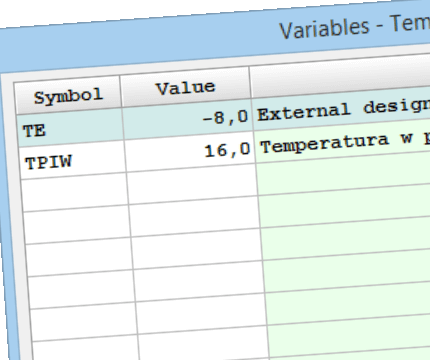

Computing variables
Heat transfer coefficient PN-EN ISO 6946
Heat transfer through the ground PN-EN ISO 13370
Inhomogeneous partitions
The system default data inheritance
Mudeli valideerimine

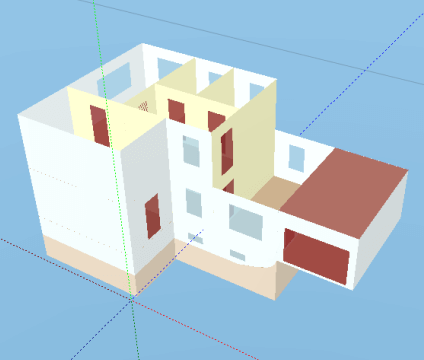

Three-dimensional preview of the imported building model
Moisture analysis of the building partitions – calculator of temperature distribution
Moisture analysis of the building partitions calculator of temperature distribution and vapor pressure
Moisture analysis of the building partitions - PN-EN ISO 13788
Heat load PN-B-03406 (an obsolete standard)

Major changes in version 6.9 Pro

NOVELTY!

AUDYTOR HL 6.9 Pro can now load building models in gbXML format from Autodesk Revit!

  • the ability to load a three-dimensional building calculation model directly from the Revit 2016-2020 program using the free gbXML Audytor plugin,
  • mechanism for checking the correctness of the loaded building model and supplementing the data necessary to perform thermal calculations.



About the program

The calculation methodologies given in current standards and regulations are in many cases very complicated, often containing a lot of insignificant details, and are also full of errors. The many years of experience of our company and the software development team (the core of the company is made up of employees and graduates of the Institute of Heating and Ventilation at the Warsaw University of Technology) enabled the development of a program that on the one hand allows for thermal calculations in accordance with applicable regulations, on the other frees designers from the need for in-depth study often unclear regulations.



Our many years of experience have allowed us to eliminate many errors occurring in the regulations and to introduce additional extensions of calculation methods that increase the flexibility of the program.

The solutions used in the program (data inheritance system) make that despite complicated computational methods and a huge amount of information necessary to enter in order to perform calculations, the time necessary to prepare a project is not too long.



We have also equipped our program with an extensive error diagnosis system and interpretation of the results obtained.

All this combined with the intuitive and transparent data entry process means that the program is able to guide the designer through the calculations process.

To meet our clients' expectations and market needs, the Audytor HL program is constantly updated by us and adapted to current changes in regulations.

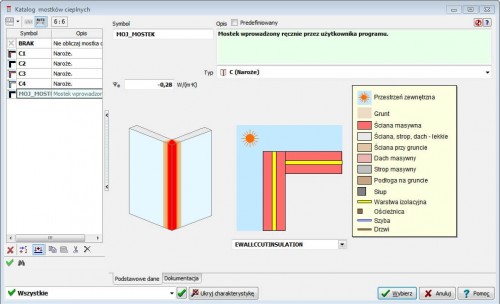

Possibility to add your own linear thermal bridges to the database

The program is equipped with a thermal bridges catalog according to PN-EN ISO 14683. This catalogue can be supplemented by user with additional thermal bridges.

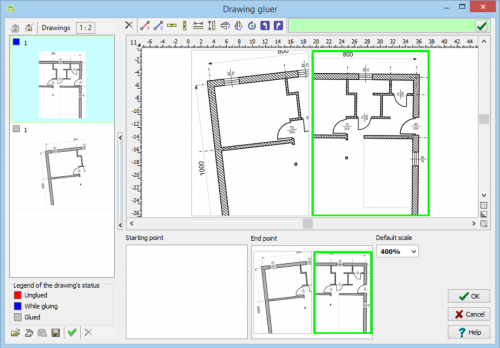

Bonding and scaling drawings

HL programs and CH are equipped with the function of Graphic creation of a building model. This function gives you the opportunity to draw a building model. To simplify the action of drawing, you can load a drawing base into the program. The file being loaded can come from an external program for creating technical drawings (eg DWG), or from a scanned drawing (eg JPG). The scanned drawing can be divided into several files. Drawings scanned into several files usually do not keep the scale precisely enough. They can also be rotated relative to each other by a small number of degrees.

Drawing bonding allows you to quickly scale multiple scanned drawings (in different sizes and rotated) and bond them with one another.

The ability to define which groups of rooms are not to be taken into account when calculating the cost sharing factors

The calculation procedure has added the option of skipping selected groups of rooms when determining the coefficients for cost sharing.

The ability to define the default LENI value for lighting

The program is equipped with the option to impose the LENI value for the same lighting for all rooms in the building, if it was calculated by the lighting designer.

Backup system of data files

The program has a mechanism that automatically creates a set of project backups (up to 8 files).

Data files are backed up every time data is saved, with the new files overwriting the older files so that at least one copy of the file from each stage of the project work is always kept.

This function will allow you to recover the project file even if its last versions are overwritten or damaged.

Possibility to include a suspended ceiling in the thermal calculations of rooms

The program allows to skip the space above the suspended ceiling during the thermal calculations of the room. This space will not be included in the internal volume.

Cooperation with programs from the SET family

After calculating the heat load, the results can be downloaded from CH family programs, eg Audytor CH. CH programs are used to graphically support the design of installations and to regulate existing central heating and chilled water installations. On the basis of the drawing of the installation and the devices selected by the user, the program selects radiators, pipe diameters, fittings and pre-settings of valves, pumps, gives total pressure loss in the installation etc.

Energy use - heating PN-EN ISO 13790

Audytor OZC wykonuje obliczenia według aktualnej normy PN-EN ISO 13790:2009 "Energetyczne właściwości użytkowe budynków - Obliczanie zużycia energii na potrzeby ogrzewania i chłodzenia". Audytor OZC oblicza zużycie energii na potrzeby ogrzewania i chłodzenia (w zależności od wersji programu). W prosty sposób umożliwia przeliczenie projektu ze starej normy PN-B 02025 na nową. Wyniki zebrane są w wygodne do oglądania tabele i wykresy, które dają możliwość dokładnego analizowania wybranych części budynku. Wszystkim osobom, a w szczególności sporządzającym Audyty Energetyczne niezwykle przydatna przy obliczeniach zużycia energii jest funkcja zmiennych.

Mudeli valideerimine

Kui hoone kolmemõõtmelised mudelid on loodud, siis saavad projekteerijad kontrollida sisestatud hooneosade õigsust.

Projekti andmete mugav arvutisse sisestamine

Kasutajasõbralik 3D-mudelite redaktor aitab andmeid kiiresti ja tõhusalt sisestada.

Hoonete korruste lihtne mudeldamine

Tänu hoone alusjooniste sisestamise võimalusele on kasutajatel võimalik joonestada seinu, aknaid, uksi ja põrandaid vajaduseta nende komponentide mõõtmeid käsitsi muuta. Hoonete alusjooniseid on võimalik importida DWG-failidena, bitmap-kujutistena või otse skaneerimisseadmetest.

Mudeli valideerimine

Kui hoone kolmemõõtmelised mudelid on loodud, siis saavad projekteerijad kontrollida sisestatud hooneosade õigsust.

Ajasääst

Vaikeandmete ja üldandmete rakendamise funktsioonid võimaldavad kasutajatel hooneosade sisestamisel aega ja vaeva säästa.

Parameetrite kiire muutmine

Muutujate rakendamine võimaldab arvutada mitmeid versioone.

Radiaatorite eelvalik

Projekteerijad saavad juba hoonete joonestamisel hinnata küttesüsteemidesse vajalike radiaatorite mõõtmeid.

Abi tehniliste dokumentide koostamisel

Projekteerijad saavad luua projektide tehnilisi dokumente mahukate materjali, hooneosade ja valitud radiaatorite ülevaadete põhjal.
